Basic Info.
Model NO.
WHC-100KW-Li-215KWH
Nominal Voltage
768V
Warranty
3 years
Nominal Capacity
215KWH
Cycle Life
6000 Time
System Type
Commercial Solar System
Max.Ouput Power
100KW
Output Voltage
AC220V
Solar Panel
550W Mono Solar Panel
Battery Capacity
215Kwh
Open Circuit Voltage range
1000V
UPS Type
1KVA/800W
Normal Voltage
768V
Max.Output Current
152A
Max Efficiency
98.78%
Feature
Build In EMS Management System
Transport Package
Package in Carton or According to Your Requiremen
Specification
100KW
Trademark
WHC / WHC SOLAR
Origin
Guangdong, China (Mainland)
Production Capacity
1000pieces/Month
Packaging & Delivery
Package Size
300.00cm * 150.00cm * 270.00cm
Package Gross Weight
2700.000kg
Product Description
WHC Solar Energy System also known as off-grid solar system is the most cost effective type for the solar system. It is a complete solar setup that comes with highly efficient solar panels.off-grid solar inverter, lithium ion battery or gel battery, and other standard solar accessories. This solar system will not only provide you continuous electricity but will also reduce your heavy electricity bills.
| WHC-100KW-Li-215KWH | ||
| NO. | Item | Quantity |
| 1 | 100kw/215kwh solar Energy storage Systemintegrated BMS/PCS/EMS, LiFePo4 Battery 215kWh, Etc | 1 Set |
| 2 | 550W Solar Mono Panel | 216 Pieces |
| 3 | 100KW PCS System | 1 Set |
| 4 | UPS | 1 Set |
| 5 | EMS Management System | 1 Set |
| 6 | Battery Cable RV*50cm² 50cm | 16 Pieces |
| 7 | PV Combiner Box: N4 Plus | 2 Piece |
| 8 | PV Cable 1*10mm 100M | 8 Pieces |
| 9 | Solar Panel Bracket | 1 Set |
| 10 | MC4 solar Cable Connector | 30 Pieces |
| 11 | Solar Py Crimping Tool kit | 1 Set |

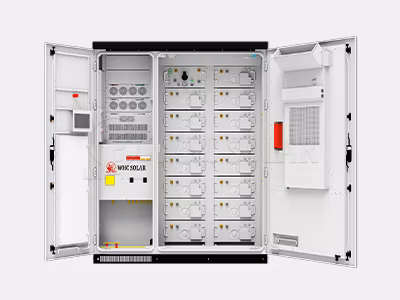

100KW/215Kwh solar EnergyStorage System
Battery Data1. Battery chemistry Lithium lron Phosphatee(LiFePo4)
2. Cell spec: 3.2v/280Ah
3. String coniguration: 1P240S
4. Rack Rated Energy Capacity: 215kwh
5. Nominal Voltage: 768V
6.Cycle:>6000(@25ºC,0.5c/0.5c)
AC Data
1.Max output power:100KW
2.Max output current:152A
3.Rated voltage:230V(single phase)/400v(3 phase)
4.Max Efficiency 98.78%
1.Type:0-1500V,140A
2.2-Stage BCMU,BMU Architecture,
3.High voltage control box
4.Ethernet communication and upgrade interface
5.Master-slave stable structure for system operation
General Date
1.Dimension(W*D*H):2700*1100*2550mm
2.Weight of the whole system:<2700kg
3.Degree of Protection:IP65
4.Operating Temperature Range:-20-40C
5.Relative Humidity:0-95%(non-condensing)
Mono Solar Panel
1.Model:WHC-550M-144
2.Voc:49.95V:Vmp:41.97V
3.IMP:12.97A:1SC:13.86A
4.Module Efficiency:20.9%
5.Operating Module Temperature:-40C to +85C
6.Maximum System Voltage:1500V DC
1.Model:WHC-550M-144
2.Voc:49.95V:Vmp:41.97V
3.IMP:12.97A:1SC:13.86A
4.Module Efficiency:20.9%
5.Operating Module Temperature:-40C to +85C
6.Maximum System Voltage:1500V DC
100KW PCS System
1.Max PV input power:100KW/215KWH
2.PV Open Circuit Voltage range:1000V
3.MPPT Working Voltage Range:250-850V
4.With Isolation Transformer.Automatic switching
1.Max PV input power:100KW/215KWH
2.PV Open Circuit Voltage range:1000V
3.MPPT Working Voltage Range:250-850V
4.With Isolation Transformer.Automatic switching
UPS
1.Type:IKVA/800W
2.Function:Backup auxiliary power supply
1.Type:IKVA/800W
2.Function:Backup auxiliary power supply
EMS Management System
1.Energy management
2.Precise control
1.Energy management
2.Precise control
