Basic Info.
Warranty
10 Year
Nominal Capacity
200ah
Cycle Life
25±2°c, 0.2c/0.2c, Eol70%≥6000
Capacity
200ah
Cell Type
LiFePO4 Battery/LFP
Maximum Charging Current
100A
Maximum Discharging Current
100A
BMS
Built-in
Certification
MSDS, Un38.3, RoHS, IEC62619, CE
IP Class
IP65
Transport Package
Carton with Pallet
Specification
122kwh 614.4v 200ah
Trademark
SunArk
Origin
China
Product Description
| Battery System Side | |
| Model | HV-614.4V 100AH*2P |
| Rated voltage | 614.4V |
| Rated capacity | 200ah (0.2C) |
| Charge voltage | 681.6VDC (adjustable) |
| Discharge voltage | 537.6VDC |
| Rated working current | 100A (0.5C) |
| Max.working current | 160A (0.8C) |
| Rated power | 61KW |
| Max.output power | 100KW |
| Recommended DoD | 90% |
| Range of working temp. | -10~50 °C |
| Working humidity range | 5-85%RH |
| Communication method | two way CAN2.0/RS485 |
| Working indicator | Blue:Power; Green:Running; Red:Alarm protection |
| Cycle life | 25±2°C, 0.2C/0.2C, EOL70%≥6000 |
| Display method | 10inch(LCD)/PC Software |
| Protective function | Voltage protection Temperature protection Current/Leakage protection Dielectric withstand voltage |
| Protective function | Over charge and over discharge Over temperature range protection YES 1000VDC(not less than 1 GΩ) |
| Dimension | 2000*2500*2500MM |
| Protection level | IP65 |
| Product packaging | Container |
| PCS DC Input Side | |
| Voltage | 150-800VDC(614.4V) |
| Max.charge power | 50+50A |
| Max.discharge current | |
| PCS DC Input Side | |
| Max.photovoltaic power | 65000W |
| Max.photovoltaic voltage | 100V |
| Starting voltage | 150V |
| MPPT range | 200-850VDC |
| Full load DC voltage | 450-850VDC |
| Rated DC input | 600V |
| PV input current | 36A+36A+36A+36A |
| PV input channels | 4 ways |
| Communication method | two way CAN2.0/RS485 |
| PCS-AC output side | |
| Rated AC power | 50KW |
| Max.output power | 55KW |
| Output rated current | 75.8A |
| Max.output current | 83.3A |
| Off-grid peak power | 1.5 times the rated power, 10S |
| Generator input/smart load/AC coupl | ing current(A) 75.8A / 150A / 75.8A |
| Power factor | 0.8lead/0.8lag |
| Output Frequency/No lt age | 50/60Hz; 3L/N/PE220/380, 230/400Vac |
| AC Phase | Three Phase |
| Highest efficiency | 97.60% |
| Rated efficiency | 97% |
| MPPT efficiency | 99.90% |
| Protective function | PV input lightning protection,anti-is landing protection,py string input reverse polarity protection, insulation resistance detection,residual current monitoring device,output over current protection, output short circuit protection,surge protection |
| Output voltage protection | DC Type II / AC Type III |
| Grid certification | CE I0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99,G98, VDE0126-1-1, RD1699, C10-11 |
| Safety certificate | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Working temp.range | -40~60°C, >45ºC Power down |
| Communication method | RS485/CAN |
WallArk Series
Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
StackArk Series
Stackable Low Voltage & High Voltage Pack
Voltage:51.2V/129.6-561.6V
Capacity: 5kWh~30kWh
Voltage:51.2V/129.6-561.6V
Capacity: 5kWh~30kWh
RackArk Series
Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50/100/150/200Ah
GroundArk Series
All In One Energy Storage System
Power: 3-12kW
Battery Capacity: 5-45kWh
Power: 3-12kW
Battery Capacity: 5-45kWh
EasyArk Series
Portable Power Station
Power: 200-3000W
Battery Capacity: 200-3000Wh
Battery Capacity: 200-3000Wh

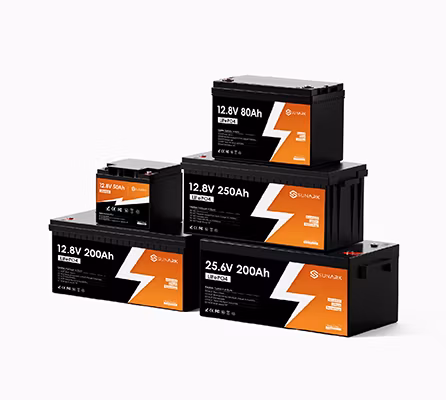

LFP Series
Lead Acid Replacement Solution
Voltage: 12V/24V/48V
Battery Capacity: 5-400Ah
Battery Capacity: 5-400Ah

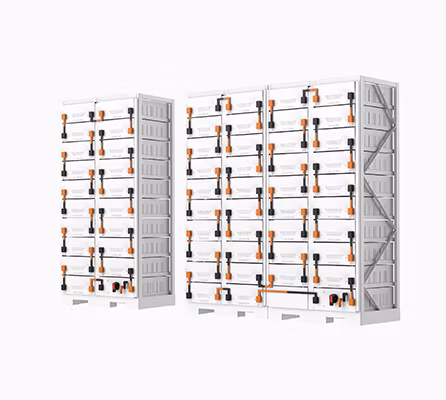

RackArk-HV Series
Rack Mount High Voltage Pack
Voltage: 614.6-1305.6V
Capacity: 72-320kWh
Capacity: 72-320kWh
CubeArk Series
Energy Storage Container
Power: 50-1200kW
Battery Capacity: 64kWh~2064kWh
Power: 50-1200kW
Battery Capacity: 64kWh~2064kWh
| Type | Single Phase | 3 Phase | Split Phase |
| Output Power | 3-16KW | 5-30KW | 5-8KW |
| Output Voltage | 220/230/240V | 220/380V, 230/400 | 120/240V |
| Battery Type | Lead Acid or Lithium Ion 40-60V | ||
Our Factory SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on. SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
