Basic Info.
Model NO.
LFP48-100RM
Nominal Voltage
Customized
Warranty
5 Years
Nominal Capacity
Customized
Cycle Life
6000 Cycles
Voltage
51.2V
Capacity
100ah
Energy
5.12kwh
Cathode Material
LFP
Transport Package
Wooden Box
Specification
442*430*178mm
Trademark
TNE or Private label
Origin
China
HS Code
8507600090
Production Capacity
3000000PCS/Year
Product Description

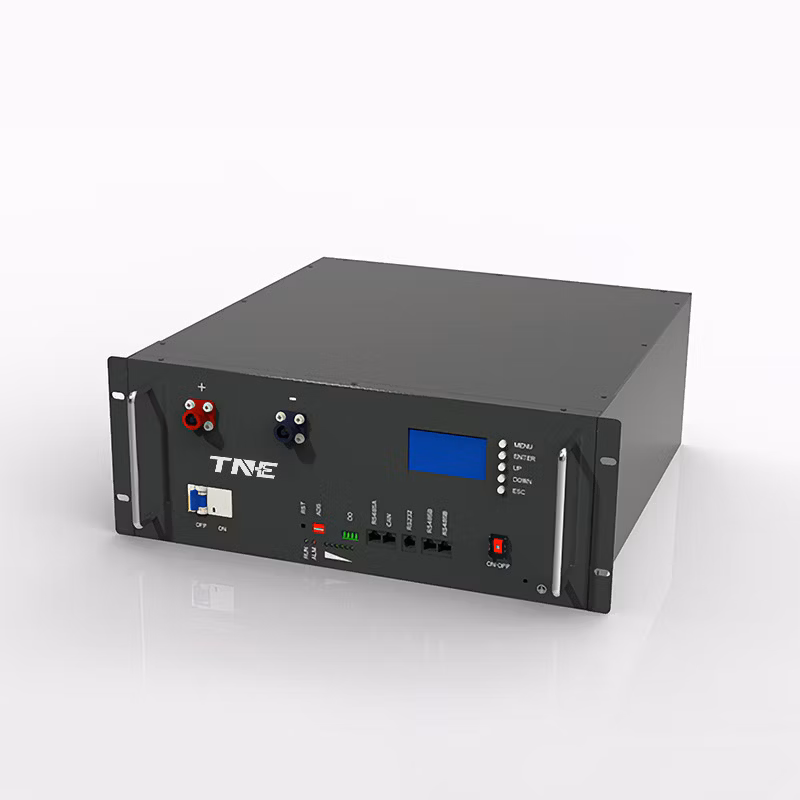

Rack Mount 48V 100Ah 5KW LiFePO4 Lithium Ion Energy Storage Container Battery
TNE 48V lithium ion battery is rack mounted LiFePO4 battery for residential household on/off grid or hybrid solar ESS (Energy Storage System) and they are featured by compact size, high energy density, long cycle life and easy to install or expand. With more than 6000 cycle life A grade lithium cells, our lithium batteries able to supply stable power output for home appliances. The built-in BMS (Battery Management System) will protect the battery from over-charging, over-discharging, over-temperature and short circuit. They are compatible with most of the popular inverter brands on market and simple in operation & installation.
| Battery Type | Rack Mounted Lithium Iron Phosphate Battery |
| Model No. | LFP48-100RM |
| Voltage (V) | 51.2V |
| Capacity (AH) | 100AH |
| Dimensions L*W*H*TH (mm) | 442*430*178mm |
| Weight (KG) | 48KG |
| Chemistry | LiFePO4 |
| Cell Type | Prismatic |
| Continuous Discharge Current | 100A |
| BMS Discharge Voltage Cut-Off | 40V |
| Max. Charge Current | 100A |
| BMS Charge Voltage Cut-Off | 54V |
| Self Discharge | <3% per month |
| Cycle Life @80% DOD(cycles) | 6000 cycles @ 0.5C |
