Basic Info.
Model NO.
WGH-100KWH
Nature of Source Flow
Passive inverter
Phase
Three
Output Power
>1000W
Certification
CE, ROHS, ISO9001
Brand
Next Greenergy
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter

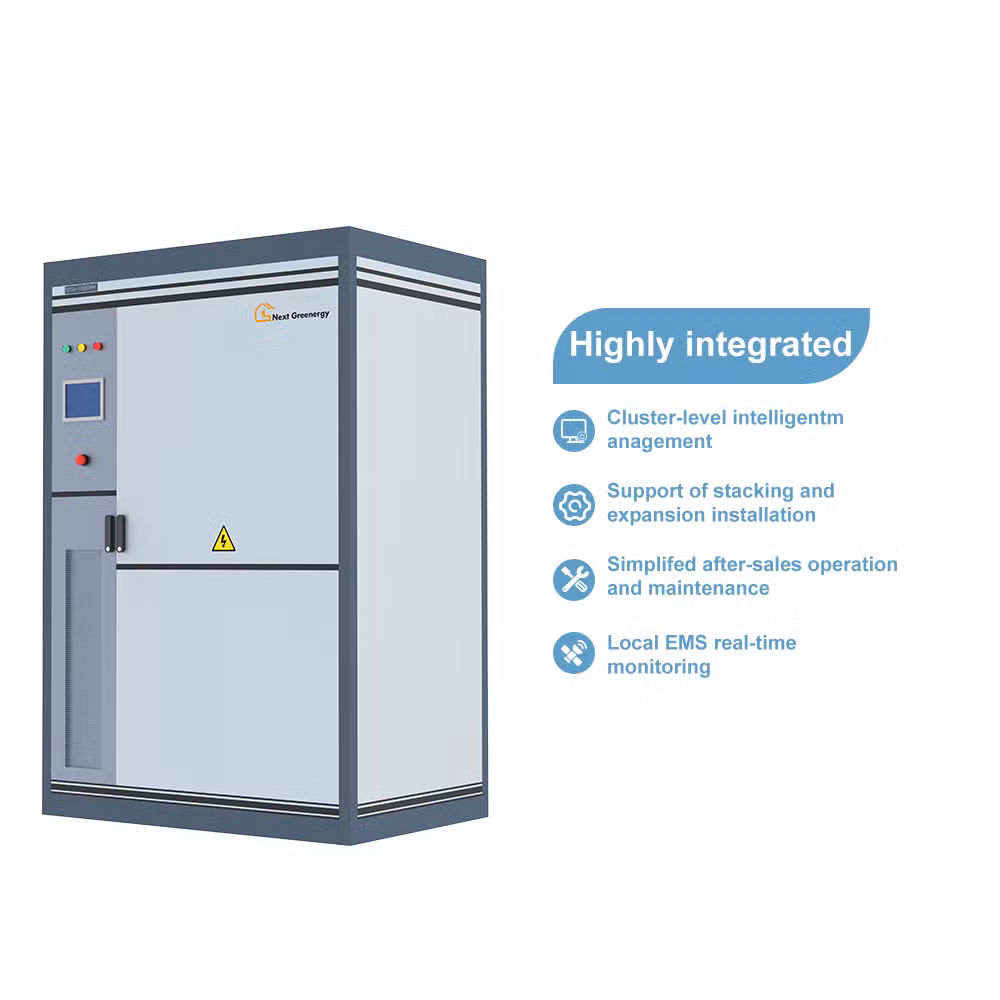

Product Name
Industrial Commercial 100kwh Solar Power System
Capacity
100kwh
Voltage
320-850V
Rated Frequency
50/60Hz
Max Efficiency
96.5%
Controller Type
MPPT
Cooling
Air Conditioner
Weight
1560kg
Transport Package
Container
Specification
1550*1000*1800mm
Trademark
Next Greenergy
Origin
China
Production Capacity
100 Pieces Per Month
Product Description
| 100KW System Configuration | |||
| Item | Product Model | Quantity | Comments |
| Cell | 280AH/3.2V | 1 set | Nextgreenergy |
| Battery PACK | 44.8V 280Ah | 8 pieces | Nextgreenergy |
| Battery Management | EMS+ BMU+ BCU | 1 set | Nextgreenergy |
| PCS | 60KW | 1 set | Nextgreenergy |
| System Integration | 60KW/102.4KWH | 1 set | Nextgreenergy |
| Air-conditioner | Air Cooling | 1 set | Nextgreenergy |
| Fire Protection | Automatic aerosol fire extinguishing device | 1 set | Nextgreenergy |
| ATS | Parallel off grid switching device (mixed network) | 1 set | Nextgreenergy |
| Model Number | WGH-100KWH |
| Battery Type | LiFePO4 |
| Nominal Voltage | 460.8Vdc |
| Nominal Power | 102.4kWh |
| Nominal Capacity | 200Ah |
| System Cycle Life | 10 Years / 8000 Times |
| Conversion Efficiency | >88% |
| Max Charging Power | 60kW/100kW |
| Max Discharging Power | 60kW/100kW |
| Range of Working Temperature | -20ºC - 55ºC |
| Charging Temperature | 0ºC - 45ºC |
| Dicharging Temperature | -5ºC - 35ºC |
| IP Rating | IP54 |
| Rated Output Voltage | AC380V |
| Output Voltage Imbalance | <5% |
| Product Size | 1550*1000*1800mm |
| Weight | 1560Kg |
| Communication interface | RS485/CAN |
| Complete Set | Yes |
PV Module
>High module conversion efficiency
>Extended wind and snow load tests
>Withstanding harsh environment
>PID Resistance
>Excellent weak light performance
Hybrid Inverter
>Modular design
DC/DC and DC/AC modules are designed independently for easy maintenance and replacement
>Expandable
Maximum of 4 inverters can be operated in parallel to form MW level system
>Touch screen
Convenient for parameter setting and viewing
DC/DC and DC/AC modules are designed independently for easy maintenance and replacement
>Expandable
Maximum of 4 inverters can be operated in parallel to form MW level system
>Touch screen
Convenient for parameter setting and viewing
Battery Rack
>Safe and reliable Self-designed BMS
>Easy installation and maintenance
Standard rack and module, front maintenance
>High power density LFP battery
≥160Wh/kg
>Flexible customization
For different application and installation
>Racks 1 Rack,143.3kWh
>Optional
Larger capacity battery packs can be used as required.
>Easy installation and maintenance
Standard rack and module, front maintenance
>High power density LFP battery
≥160Wh/kg
>Flexible customization
For different application and installation
>Racks 1 Rack,143.3kWh
>Optional
Larger capacity battery packs can be used as required.
Most Complete Configuration
>Configuration is most complete on the market, which includes all necessary components. After the installation is complete.
>Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill
protection,insulation resistance protect
>Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill
protection,insulation resistance protect
Shenzhen Itsuwa Technology Co., Ltd.
Founded in 2014, armed with a team of 100 experienced staff, covers an area of 2000 square meters. Our R&D team has more than 20 employees, they have a wealth of electronic experience and enthusiasm for electronic product innovation.
We have built our own SMT lines and in-house prototyping workshop to make mock-up samples. With years of efforts, we exported our products to North America,Europe, Asia, Australia. We built relationship with customers like Retailers, Wholesale Distributors, OEM & ODM Brand customers. We are committed to innovating and improving our existing technical standards to bring our customers safety .
To make it possible"Power Anything, Anywhere,Anytime."
