Industrial and commercial ESS


The energy storage system helps to use and manageenergy more effectively, reduce electricity bills, andcan be applied to various scenarios,such as poweruser peak-valley arbitrage, power grid frequencyregulation and peak regulation, improving new energyconsumption, and improving grid power supplystability, etc.


12V-LiFePO4-battery12v


Replacing lead-acid batteries, widely usedin RVs, golf carts, yachts, solar street lights,photovoltaic energy storage systems, UPS,etc.



Portable power station


The product has built-in high-efficiencypower Lithium ion battery,reliable lithiumbattery management system (BMS),andhigh-efficiency energy conversion circuit.lt has the characteristics of light weight,small size and high power, providingconvenience for customers.




Portable power station


The product has built-in high-efficiencypower Lithium ion battery,reliable lithiumbattery management system (BMS),andhigh-efficiency energy conversion circuit.lt has the characteristics of light weight,small size and high power, providingconvenience for customers.


Electric Electric Motorcycle Battery


Electric vehicle lithium battery energysaving,green, environmental protection,low carbon "performance strong" use isalso relatively light, fast.


Underwater robot battery


Underwater robot batteries are widelyused in underwater robots pipeline robots,sweeping robots, AGV cars, etc.

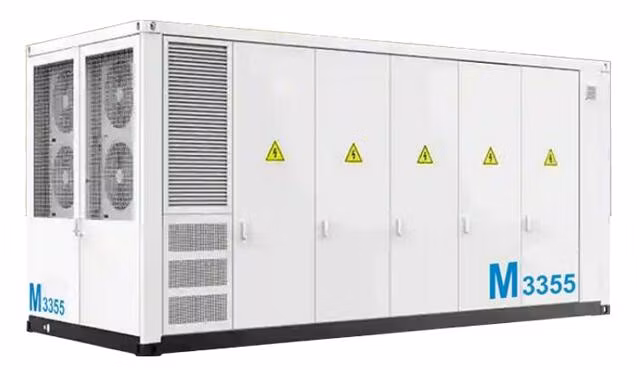

Industrial and commercial ESS

Performance parameters	LFP,3.2V/280Ah,9*1P416S
Battery voltage range	1040~1518.4V
Rated capacity	3355kWh
BMS communication interface	CAN
Rated power	1.72MW
AC current distortion rate	<3%( rated power)
Rated grid frequency and range	50Hz,45~55Hz
Power factor and adjustable range	>0.99,-1~+1
Converter container size (w*h*d)	6058*2896*2438 mm
Converter container weight	32T
Protection class	IP54
Maximum working altitude	4000m
Operating temperature	-30~50ºC
Operating humidity	0~95%
Firefighting system	FM200 gas firefighting, combustible gas detection + exhaust, water firefighting

12V-LiFePO4-battery12v

Model	Nominal Voltage	Rated Capacity	Max Discharge Current	Dimension
UBTLF1206	12.8V	6Ah	6A	151*65*95mm
UBTLF1210	12.8V	10Ah	10A	151*99*94mm
UBTLF1220	12.8V	20Ah	20A	165*126*175mm
UBTLF1230	12.8V	30Ah	30A	174*165*125mm
UBTLF1240	12.8V	40Ah	40A	174*165*125mm
UBTLF1250	12.8V	50Ah	50A	198*166*170mm
UBTLF1260	12.8V	60Ah	60A	229*138*200mm
UBTLF1280	12.8V	80Ah	80A	260*168*209mm
UBTLF12100	12.8V	100Ah	100A	330*172*214mm
UBTLF12150	12.8V	150Ah	150A	483*170*240mm
UBTLF12200	12.8V	200Ah	200A	522*240*218mm
UBTLF12300	12.8V	300Ah	200A	522*240*218mm
UBTLF12400	12.8V	400Ah	250A	520*269*220mm
UBTLF2420	25.6V	20Ah	20A	198*166*170mm
UBTLF2440	25.6V	40Ah	40A	260*168*209mm
UBTLF2460	25.6V	60Ah	60A	329*172*214mm
UBTLF24100	25.6V	100Ah	100A	522*240*218mm
UBTLF24200	25.6V	200Ah	200A	520*269*220mm

Portable power station

Model	UB-600/UB-1200
Power	600W/1200W
Battery	22.2V 43.2Ah/22.2V 52.8Ah
Energy	959Wh/1172Wh
Dimension	L340*W213*H208mm
Weight	7.9±5% Kg/8.75±5% Kg
AC Output	220V 50HZ 600W/1200W
DC Output	PD OUT45W/100W,2*QC3.0,2*DC, Car charging output
Input	1*DC,PD IN
Others Features	LED,PV

Portable power station

Model	UB-PP3/UB-PP4
Power	2000W/3000W
Battery	25.6V 80Ah/48V 40.5Ah
Energy	2048Wh/1944Wh
Dimension	592*467*274±5mm/320*350*500±5mm
Weight	35±5% Kg
AC Output	110V/220V 50HZ
DC Output	2*12V DC,1*24V DC,3*USB Port,1* Type C/2* Type C,2*USB,2*12V DC
Input	1*110V/220V,1*12V GX20/1*110V/220V,1*PV,1* Car Charger
Others Features	Universal wheel,PV

Electric Electric Motorcycle Battery

Model	Capacity ( Ah)	Voltage (V)	Continuous  Current	Max  current	Weight ( Kgs)	Dimensions( mm) L*W*H
UBT-M3610	10Ah	36V	20-35A	35A	≤5	200*150*75
UBT-M3620	20Ah	36V	20-35A	35A	≤7.5	200*180*100
UBT-M4824	24Ah	48V	30-50A	50A	≤15	180*210*170
UBT-M4830	30Ah	48V	30-50A	50A	≤18	182*130*263
UBT-M6024	24Ah	60V	50-80A	80A	≤18.7	230*210*170
UBT-M6030	30Ah	60V	50-80A	80A	≤20	190*160*284
UBT-M6040	40Ah	60V	50-80A	80A	≤26	340*210*145
UBT-M7220	20Ah	72V	50-100A	100A	≤16.5	260*210*170
UBT-M7230	30Ah	72V	50-100A	100A	≤17.6	233*173*284
UBT-M7240	40Ah	72V	50-100A	100A	≤20	295*220*180





Underwater robot battery

Model	UBT4816
Voltage	48V
Capacity	16Ah
Cycle Life	2000
Charging Cutoff Voltage	54.75V
Discharge Cutoff Voltage	37.5v
Charging Current	5A
Discharge Current	3.2A
Weight	9.2Kg
Charging Temperature	0-40ºC
Discharge Temperature	-15-55ºC
Storage Temperature	-10-35ºC
Communication Mode	RS485/RS232/CAN
