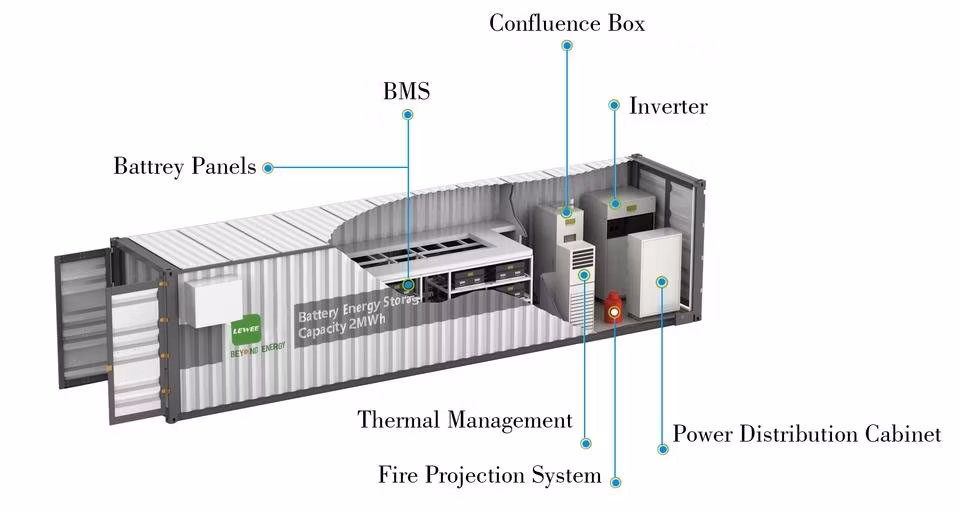

Everbest 50kw 100kw 250kw 500kw 100kwh 107kwh 200kwh 215kwh 500kwh 1mwh 2mwh Bess Ess Solar LiFePO4 Battery Energy Storage System Container
Everbest 100kw 250Kw 500kw 100kwh 200kwh 500kwh 1mwh 2mwh Bess ESS Solar LiFePO4 Battery Energy Storage System Container
| Model | ESS-100K215KWh-PSD PV100 |
| Type | 100kW/215kWh |
| Battery Parameters | |
| Cell | LFP280Ah |
| Pack | 153.6V 280Ah |
| Rated Voltage | 768V |
| Battery capacity | 280Ah |
| Rated energy | 215.04kWh |
| Usable energy | 204.2kWh |
| Voltage range | 684V~864V |
| Max.Charging power | 100kW |
| AC On-grid parameters | |
| Inverter | 100kW |
| Grid Type | 3W+N+PE |
| Rated Charge/Discharge Power | 100kW |
| Rated Grid voltage | AC400V |
| Applicable grid frequency | 45~55Hz/55~65Hz |
| Rated current | 144A |
| THDi | <3% |
| Power factor | 1(Leading)~1(Lagging) |
| AC Off-grid parameters | |
| Rated Charge/Discharge Power | 100kW |
| Max Output power | 110KVA |
| Rated Grid voltage | AC400V |
| Rated Frequency | 50/60Hz |
| THDi | ≤1% linear; or≤5% nonlinear |
| Rated current | 144A |
| Photovoltaic input | |
| Max Input Power | 100kW |
| MPPT Voltage Range | 200~650V |
| General Parameter | |
| Dimension:W*D*H(mm) | 1450mm*1650mm*2340mm |
| Max. Weight | ≈2750KG |
| IP Degree | IP54 |
| Operating Temperature Range | -20~50ºC |
| Relative Humidity | 0~95%(No condensation) |
| Maximum operating altitude | 4000m(>2000/derating) |
| Cooling Method | Air-cooled (cooling, ventilation, heating) |
| Noise | ≤75dB |
| System Efficiency | ≥85% |
| Firefighting system | Integrated |
| Communication | Ethernet, Modbus TCP/IP |
Shenzhen Everbest Co., Ltd. is a new energy enterprise dedicated to the research, development, production, sales and service of industrial and commercial energy storage systems, home energy storage systems and special power lithium battery systems. The core team of the company mainly comes from BYD, Huawei, etc. The company holds multiple core patents in key processes of lithium batteries. It mainly focuses on household energy storage systems, industrial and commercial energy storage systems, special vehicle lithium batteries and other special customized lithium batteries or systems. Its products are sold to more than 100 countries and regions worldwide, and have passed various global certifications, including IEC/CB/CE/UN38.3/MSDS, etc. Mission: Promoting new energy to benefit every family in the world by technology and product innovation
Only for lithium battery,we provided globally > 11000Mwh until 31,Nov 2023.
60% for residential energy storage, 40% for commercial&industrial energy storage.
BESS/ESS: Monthly production capacity:30Mwh per month.
Cell : EVE 3.2V 280Ah
