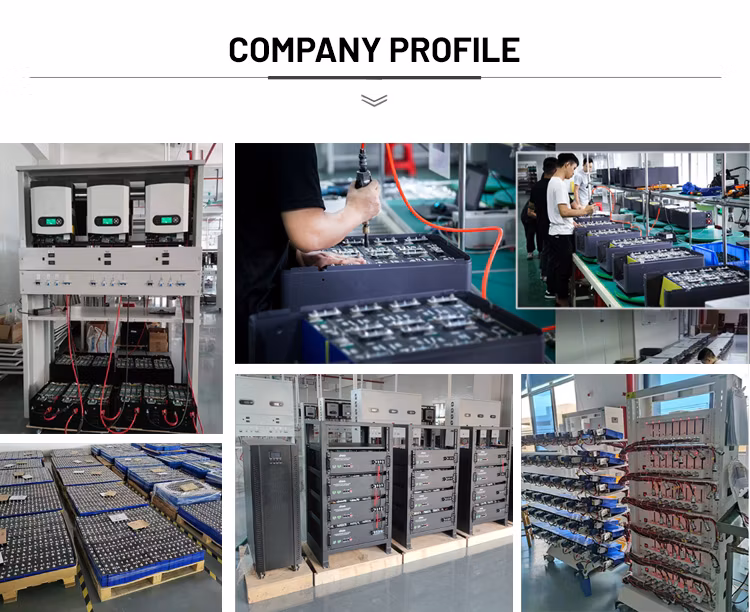

- Company Profile
Basic Info.
Model NO.
Lithium Ion
Rechargeable
Yes
Size
Large
Communication Port
Can, RS485
Protection Class
IP54
Usage
Solar Energy Solutions
Solar Energy Solutions
off Grid
Transport Package
Wooden Case
Specification
Leak-proof battery
Trademark
BH
Origin
China
Production Capacity
10000/Month
Packaging & Delivery
Package Size
1219.00cm * 243.00cm * 289.00cm
Package Gross Weight
3500.000kg
Product Description
Container Lithium Battery
The off-grid photovoltaic power generation system is a new type of power source that generates electricity from photovoltaic components, manages the charge and discharge of the battery through the controller, and provides electrical energy to the DC load or the inverter to provide electrical energy to the AC load. It is widely used in plateaus, islands, remote mountainous areas and field operations where the environment is harsh. It can also be used as a power supply for communication base stations, advertising light boxes, street lights, etc.
| Model | 20ft | 40ft |
| Output volt | 400V/480V | |
| Grid frequency | 50/60Hz(±2.5Hz) | |
| Output power | 50-300kW | 250-630kW |
| Bat capacity | 200-600kWh | 600-2MWh |
| Bat type | LiFePO4 | |
| Size | Inside size(L*W*H):5.898*2.352*2.385 | Inside size(L*W*H)::12.032*2.352*2.385 |
| Outside size(L*W*H):6.058*2.438*2.591 | Outside size(L*W*H):12.192*2.438*2.591 | |
| Protection level | IP54 | |
| Humidity | 0-95% | |
| Altitude | 3000m | |
| Working temperature | -20~50ºC | |
| Bat volt range | 500-850V | |
| Max. DC current | 500A | 1000A |
| Connect method | 3P4W | |
| Power factor | -1~1 | |
| Communication method | RS485,CAN,Ethernet | |
| Isolation method | Low frequency isolation with transformer | |
1. The use of photovoltaic systems can achieve better utilization of renewable energy;
2. Has a high system practicability;
3. Compared with a system with a single-use diesel generator, it has less maintenance and uses less fuel;
4. Better flexibility in load matching. Photovoltaic systems can be applied to a wider range of load systems, for example, larger AC loads, shock loads, etc. can be used. It can also better match the load and the power generation of the system.
