Customization:	Available
Type:	LiFePO4
Rechargeable:	Yes

Overview
Product Description
More Products
Company Profile
FAQ
Contact Us

Basic Info.

Model NO.

SCAP-A-51.2

Size

Large

AC Rated Voltage

230VAC

Rated Frequency

50Hz

Waveform

Pure Sinusoidal Wave

Communication Interface

RS232(Inverter)/RS485(BMS)

Transport Package

Carton Box with Wooden Pallet

Specification

60*40.5*19.5cm

Trademark

OEM/ODM

Origin

China

Production Capacity

100000 Per Year

Product Description

Inverter	Model	A-51.2-100	A-51.2-200	A-51.2-300	A-51.2-400	A-51.2-500	A-51.2-600	A-51.2-700
	Rated Power	5KW
	AC Rated Voltage	230VAC
	Rated Frequency	50Hz
	Efficiency	>94%
	Transfer Time	10ms
	Waveform	Pure sinusoidal wave
	Battery Overvoltage	58.4V
	Battery Undervoltage Alarm	45V
	Constant Voltage Charge	58.4V
	Float Voltage	56V
	Max Charging Current	100A
	Communication Interface	RS232(Inverter)/RS485 (BMS)
	Dimension	6040.518cm
AC Input	Nominal Voltage	230VAC
	Voltage Range	90-280VAC
	Rated Frequency	50Hz
	Frequency Range	40-70Hz
	Rated Current	30A
	Max AC Current	60A
PV Input	Max Voltage	500V
	Optimum Voltage	300--400V
	Voltage Range	120V--500VDC
	Max Power	5500W
Battery	Rated Capacity	A-51.2-100	A-51.2-200	A-51.2-300	A-51.2-400	A-51.2-500	A-51.2-600	A-51.2-700
	Nominal Voltage	51.2V
	Discharge Voltage Range	43.2V-58.4V
	Standard Charing Current	50A
	Max Charging Current	100A
	Max Discharging Current	100A
	Depth of Discharge	90%
	Communication Interface	CAN/RS485
	Cycle Life	≥6000,25±2ºC,0.5C,EOL80%
	Working Temperature Range	Charge:0ºC-50ºC;Discharge:-10ºC-60ºC
	Storage Temperature	-20ºC-60ºC
	Dimension	6040.519.5cm

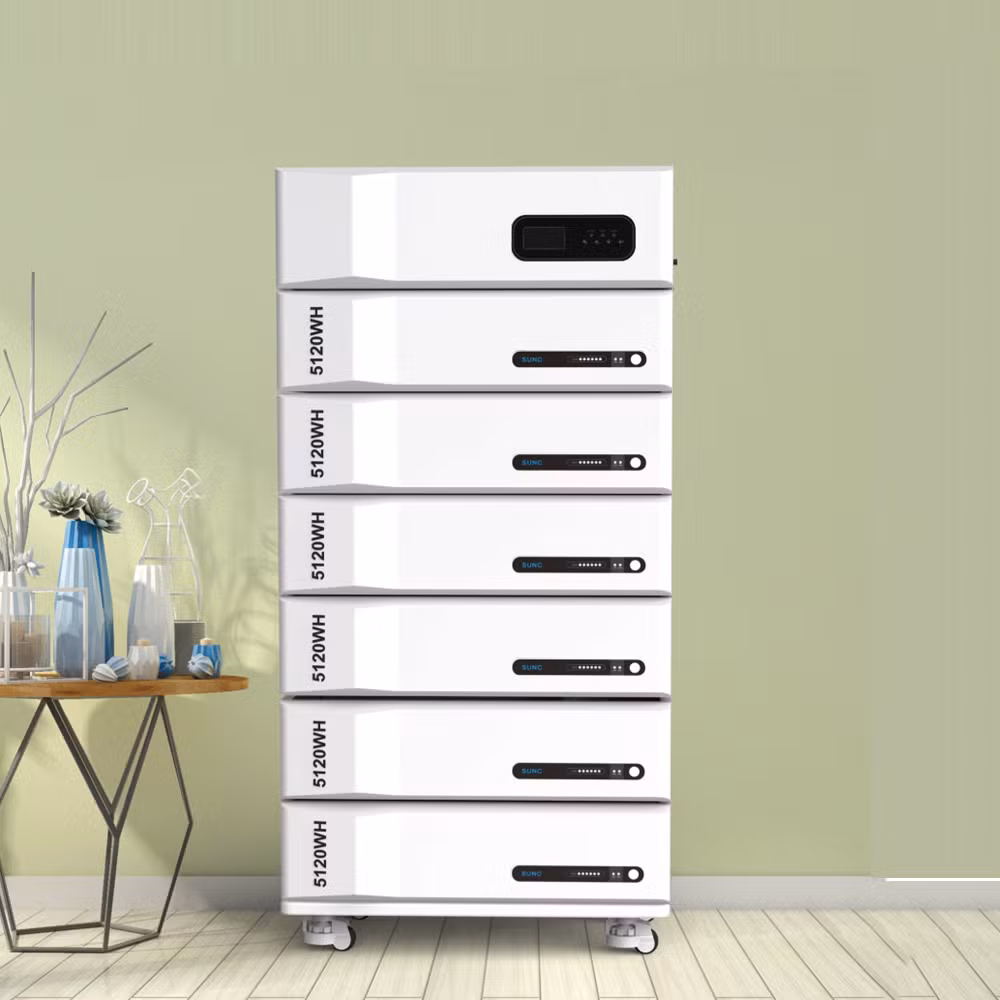

5120wh Home Energy Storage Stackable Battery with Pure Sine Wave Inverter

RATOPO new energy was founded in 2009, which is a professional manufacturer specializing in the solar field for more than 14 years, including solar batteries, solar inverters, solar panels, solar controllers, solar street lights and solar water pump etc.

Our factory has a total area of 200,000 sqm, use the advanced automatic production lines to ensure the quality of our products and save the production cost.which make our price more competitive in the market.

Why Choose RATOPO new energy?
1.We have professional photovoltaic partners in 20+ countries.
2.Overseas warehouses in US and EU to provide more convenient and efficient services.
3.Complete certifications and competitive prices.
4.Won five-star praise from 100% customers.
Contact us for more information and look forward to cooperating with you!

Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.

Q: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.

Q: How do you ship the goods and how long does it take to arrive?
A: We usuallly ship by Fedex. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.

Q: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.

Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority

5120wh Home Energy Storage Stackable Battery with Pure Sine Wave Inverter
