Customization:	Available
Container Size:	40FT
Nominal Voltage:	380/400 V

Overview
Product Description
Project cases
Why Choose Us
Customer Feedback
Company Profile
Exhibition

Basic Info.

Model NO.

GBP-Containerized

Warranty

5 Years

Nominal Capacity

800-3000 Kwh

Cycle Life

5000+

Altitude

3000 M

Protection Level

IP54

Connection Method

3p4w

Communication Method

RS485,Can,Ethernet

Battery Type

Lithium Iron Phosphate Battery

Transport Package

Dangerous Goods Box

Specification

2438*12192*2591mm

Trademark

GSO

Origin

Jiangsu Yangzhou

Production Capacity

100 Pieces/Years

Packaging & Delivery

Package Size

2438.00cm * 12192.00cm * 2591.00cm

Package Gross Weight

7000.000kg

Product Description

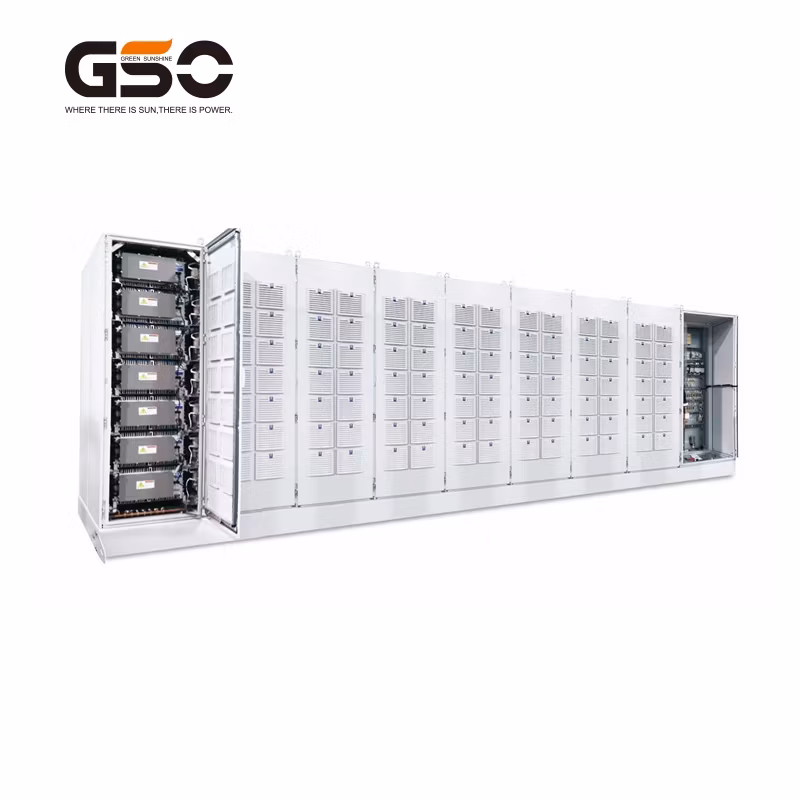

3.7mwh Liquid Bess Industrial and Commercial Solar Battery Container Energy Storage System

Energy Storage Container

The container includes:
1.Energy storage battery system

2.PCS booster system

3.Fire fighting system

4.Monitoring system, etc.

It is widely used in Scenarios such as power security, Back-up power, Peak shaving and valley filling,

New energy consumption and grid load smoothing, etc.

3.7mwh Liquid Bess Industrial and Commercial Solar Battery Container Energy Storage System

model	10ft	20ft	40ft
Output voltage	380/400±15%V
Grid frequency	50/60(±2.5)Hz
Output power	50~100kW	50~500kW	250~630kW
Battery capacity	50~400kWh	200~1500kWh	800~3000kWh
Battery Type	Lithium iron phosphate battery
Dimensions	243829912591mm	243860582591mm	2438121922591mm
Protection level	IP54
Humidity range	0~95%RH
Altitude	3000m
Operating temperature	-20~50 ºC
Battery voltage range	250~850V
Maximum DC current	200A	750A	1500A
Connection method	3P4W
Power factor	-1~1
Communication method	RS485,CAN,Ethernet
Isolation method	Power frequency isolation

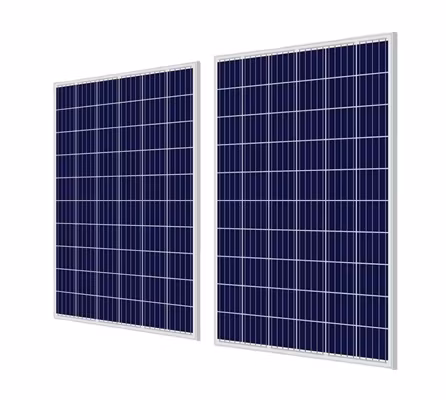

Solar Panels

Mono/Poly/felxible/black etc all types Panels ,

High efficiency power up to 450/500/550W Half Cell/BifacialSolar PV Modules; All certificates listed with more than 30years life and warranty: PID Resistant,High salt and ammonia resistance.

Hybrid Energy Storage Inverter

Automatic Switch to charge loads, batteriesor from Grid backup with priority settingfunction;

Lithium Battery and GEL storage battery compatible with almost all types of inverters;Comprehensive WlFl monitor for electricityproduction and consumption data, to checkyour investment payment on time;

Solar Lithium/GEL Battery Packs

Lithium and GEL Storage Batteries Optional; 100Ah/150Ah/200Ah, with 100kwh/300kwh/500kwh capacity; BMS Communication matched with almost all types of hybridenergy inverters; Installation is convenient with cable.rack etc Accessories ready inpackage.

20H/40H Outdoor Container

The solar container inc ludes lighting, access control, fireprotection, and air conditioning. 20h can hold 1000kwh battery, invertercombiner box or PCS, 40hg can hold 1800wh~2000kwh battery and other equipment. Can be placed indoors or outdoors, with heat insulation function.

3.7mwh Liquid Bess Industrial and Commercial Solar Battery Container Energy Storage System

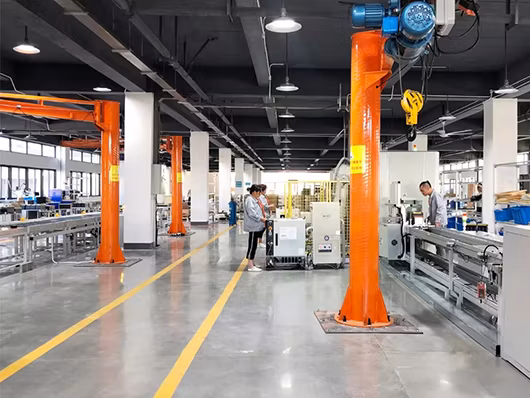

Jiangsu Lvyang New Energy is a high-tech enterprise dedicated to photovoltaic, energy storage and related products. The company specializes in the integration of lithium battery PACK, household energy storage and energy saving products.

2023 SNEC Exhibitions 2023 Canton Fair

2023 CESC Exhibitions 2023 EESA Exhibitions

3.7mwh Liquid Bess Industrial and Commercial Solar Battery Container Energy Storage System
